Fatigue strength: PH1 steel (Vxx/TMS)

This page presents the S-N curves and fatigue limit of PH1 steel samples that underwent heat treatment, machining that removed allowance of 0.5mm and shot-peening (in that order), obtained using the bending tests of rotating bars with AM layers normal to the axis of rotation.

Production and prost-processing conditions

Build orientation of longitudinal axis vertical
Position with respect to inert gas flow undefined
Post-processing heat treatment → machining allowance 0.5mm → shot-peening

Experimental S-N curve

Experimental method ISO1143, rotating bending test R=-1
Run-out criterion 107 cycles
AM layers normal to axis of rotation

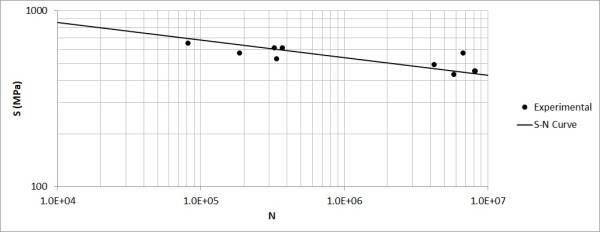

Wöhler curve

Fatigue limit (MPa) 433
Number of cycles to failure N N=4,29⋅1033⋅S-10,10
Stress amplitude S (MPa) S=2136⋅N-0,099

Explanation of the terms are given at the page Fatigue strength description.

This page is a part of the section DMLS/SLM: Fatigue design rules.
