Fatigue strength: MS1 steel (Vxx/MSn)

This page presents the S-N curves and fatigue limit of MS1 steel samples that underwent machining that removed allowance of 0.5mm and shot-peening (in that order), obtained using the bending tests of rotating bars with AM layers normal to the axis of rotation.

Production and prost-processing conditions

Build orientation of longitudinal axis vertical
Position with respect to inert gas flow undefined
Post-processing machining allowance 0.5mm → shot-peening

Experimental S-N curve

Experimental method ISO1143, rotating bending test R=-1
Run-out criterion 107 cycles
AM layers normal to axis of rotation

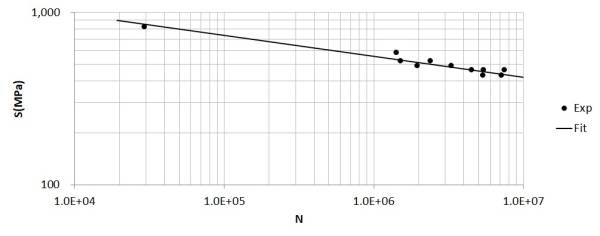

Wöhler curve

Fatigue limit (MPa) 423
Number of cycles to failure N N=5,02⋅1028⋅S-8,26
Stress amplitude S (MPa) S=2970⋅N-0,121

Explanation of the terms are given at the page Fatigue strength description.

This page is a part of the section DMLS/SLM: Fatigue design rules.
